High Speed Rotary Union for Machinery Tool Industry
Product Feature
Automatic release device when dry running.
Suitable for dry operation at high speed.
Alluminum alloy body with special heat dissipation design.
High precision ball bearing result in smooth operation with no vibration.
Excellent balanced mechanical seal design.
Labytinth seals and vent holes are used to protect the bearings.
The special structure of the sealing ring improves the product performance.
Technology Parameters
| Max. BAR | 110 | Max. Temperature | 70℃ |
| Max. Speed | 20000RPM | Max. L/Min | 80 |
| Medium | Air | Hot oil | Coolant liquid |
Note: Not suitable for dry operation.

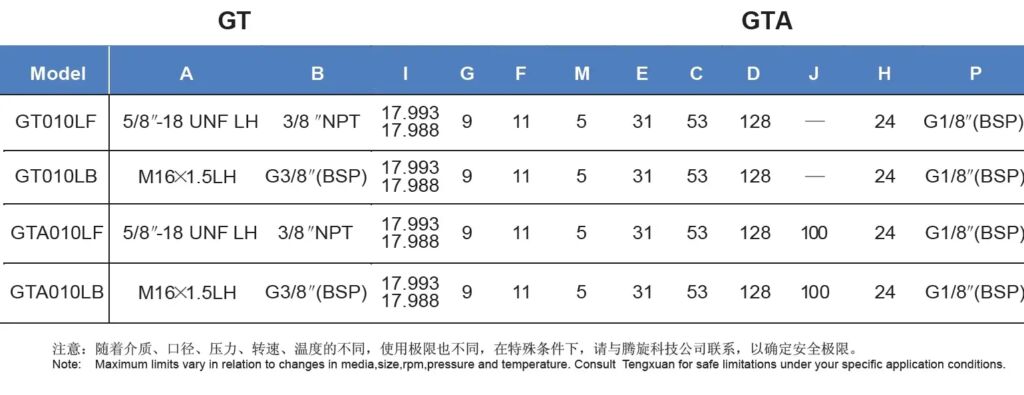

SIZE TABLE
